With the Quadro 100 light and Quadro 115, are the rescue chutes you have been looking for. The demand for light equipment is growing, so it was time to come up with a product that meet this need.
These rescue chutes of the new generation combine all the features that a safe modern rescue device must have:

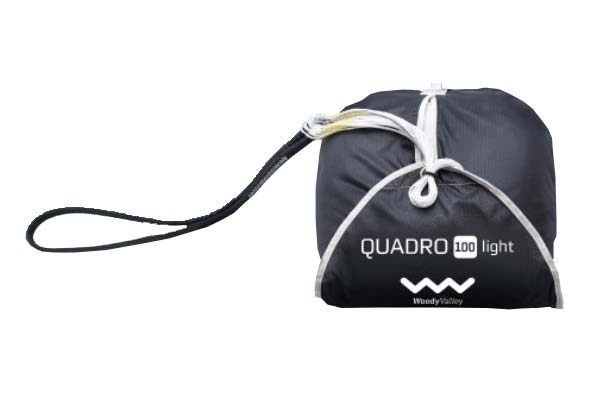

Quadro 100 light:
- fastest opening time: 2.8 seconds
- very low rate of descent with maximum trailer load: 5.2 m/s
- super light weight: 0.985 kg
- smallest pack size: 23 * 23 * 7 cm³
- very long service life: 15 years
These excellent results could be achieved by using the most modern and highest quality material from Germany:
- Ultralight high-strength water-repellent cloth by UTT
- light and extremely break-resistant linen by Liros
- high-quality binding tapes from Güth & Wolf
The Quadro was certified in accordance with the strict and globally recognized EN standards at Air Turquoise in Switzerland.
Anyone in need of a pendulum-stable rescue with low sinking speed and extremely light dead weight will choose a Quadro rescue.
| Rescue chutes | Quadro 80 light | Quadro 100 light | Quadro 115 | Quadro 120 light | Quadro 140 light | Quadro 220 light |
|---|
| Certification | LTF/EN | LTF/EN | LTF/EN | LTF/EN | LTF/EN | LTF/EN |
| Working load [kg] | 80 | 100 | 115 | 120 | 140 | 220 |
| Number of certification | EP 336.2022 | EO 239.2018 | EP 220.2018 | EP 329.2021 | EP 253.2019 | EP297.2020 |
| Area [m²] | 23.20 | 32.20 | 36,20 | 35.50 | 44.80 | 69 |
| Number of cells | 20 | 20 | 20 | 24 | 24 | 28 |
| Weight including container [kg] | 0.93 | 0.98 | 1,250 | 1.31 | 1.51 | 2.43 |
| Minimum Volume [cm³] | 3600 | 4100 | | 5200 | 5600 | 900 |
| Maximum payload [kg] | 80 | 100 | 115 | 120 | 140 | 220 |
| Minimum payload [kg] | 52 | 65 | 75 | 80 | 95 | 150 |
| Middle line | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximale Abstiegsgeschwindigkeit Nutzlast [m/s] | 5.37 | 5.47 | 5.49 | 5.25 | 5.47 | 5.14 |
| Opening time [s] | 3.35 | 3.23 | 3,71 | 3.99 | 3.12 | 3.99 |
