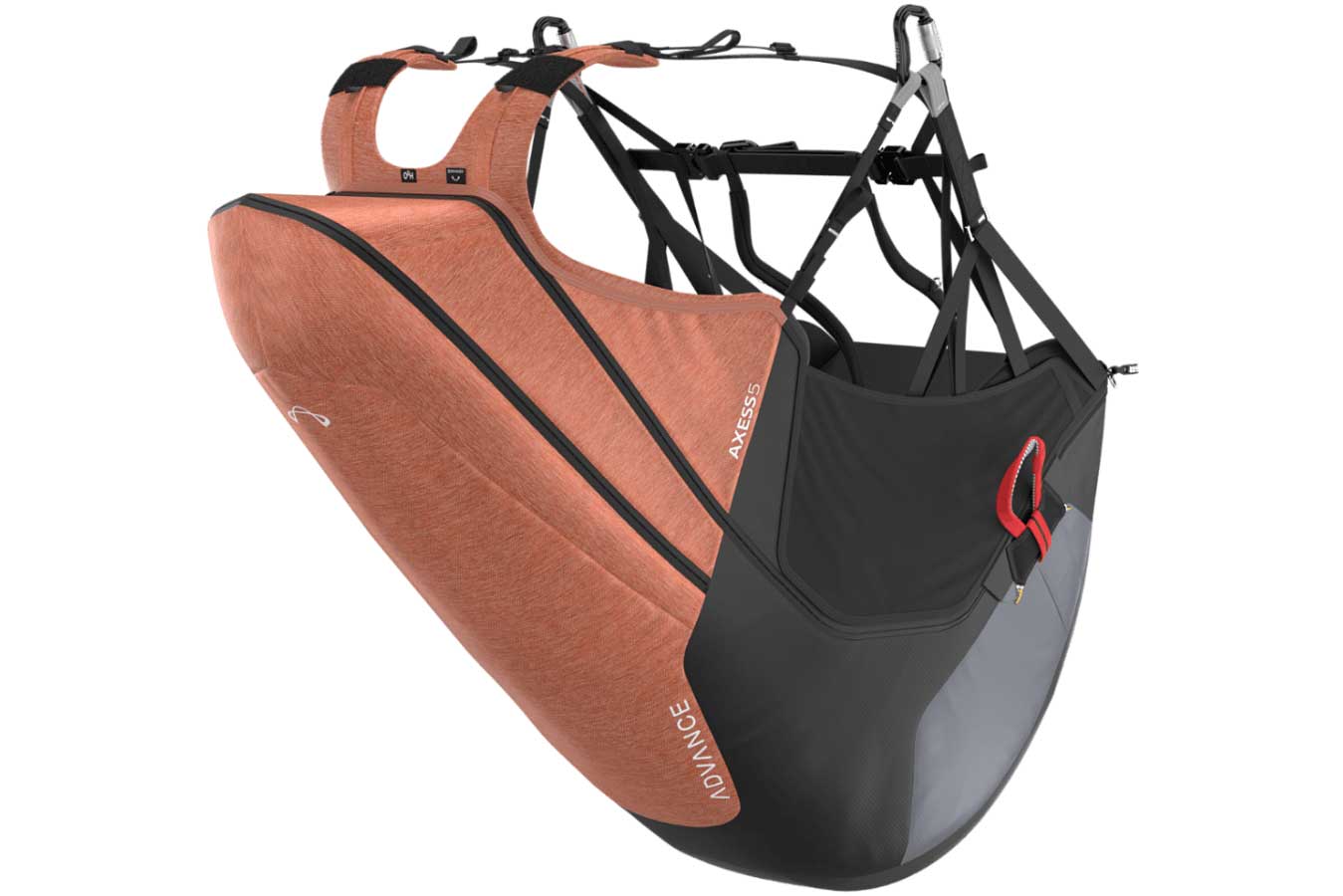

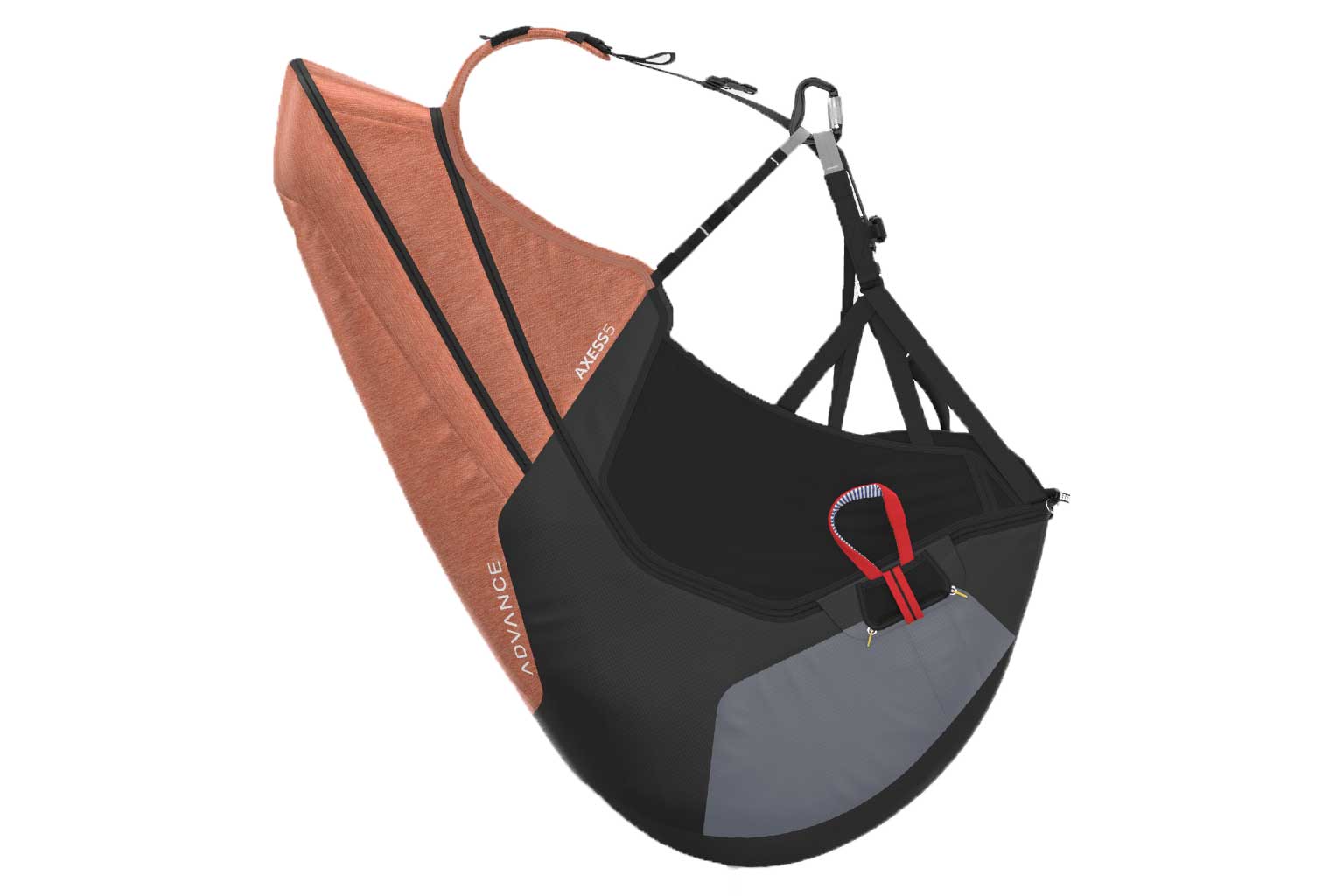

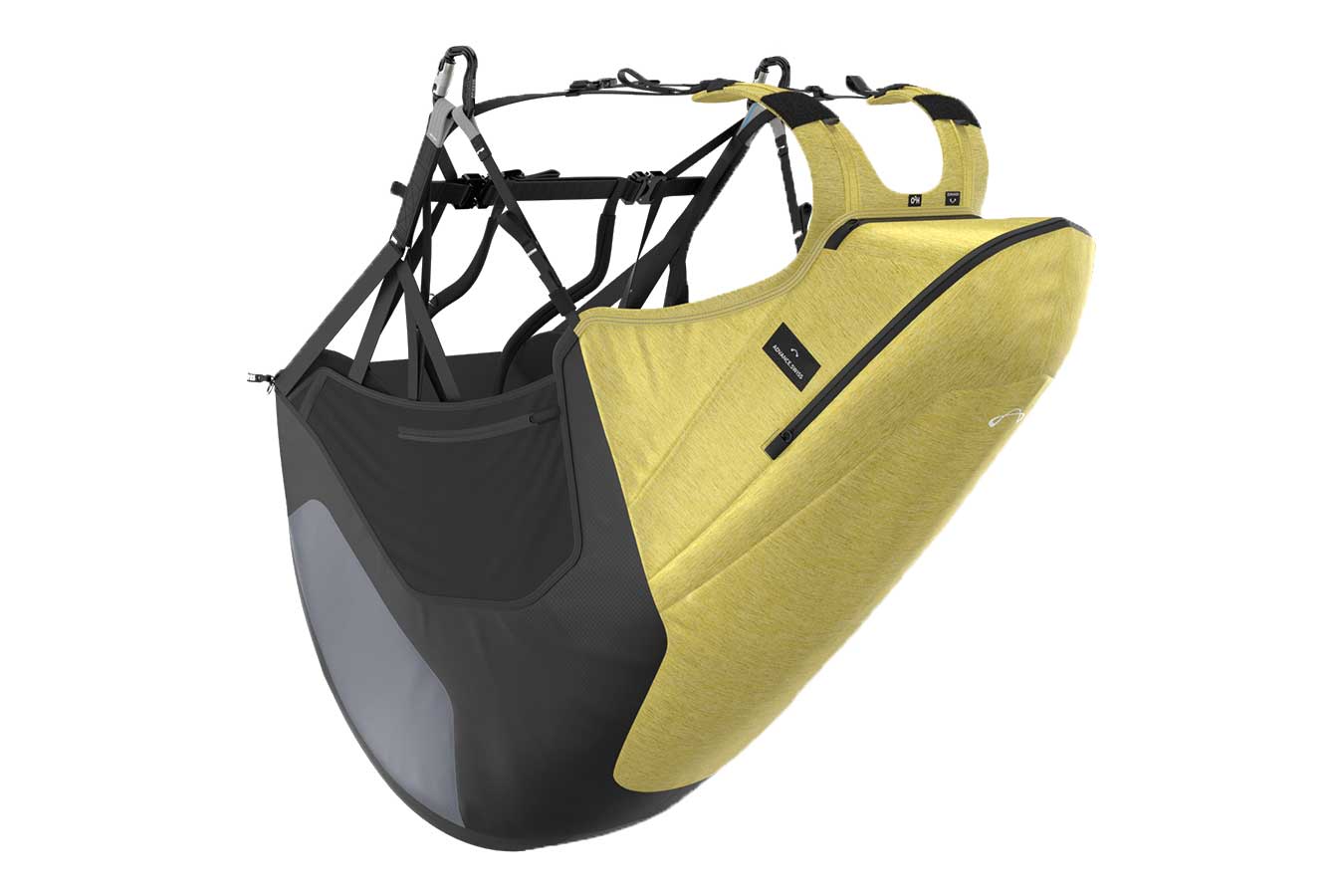

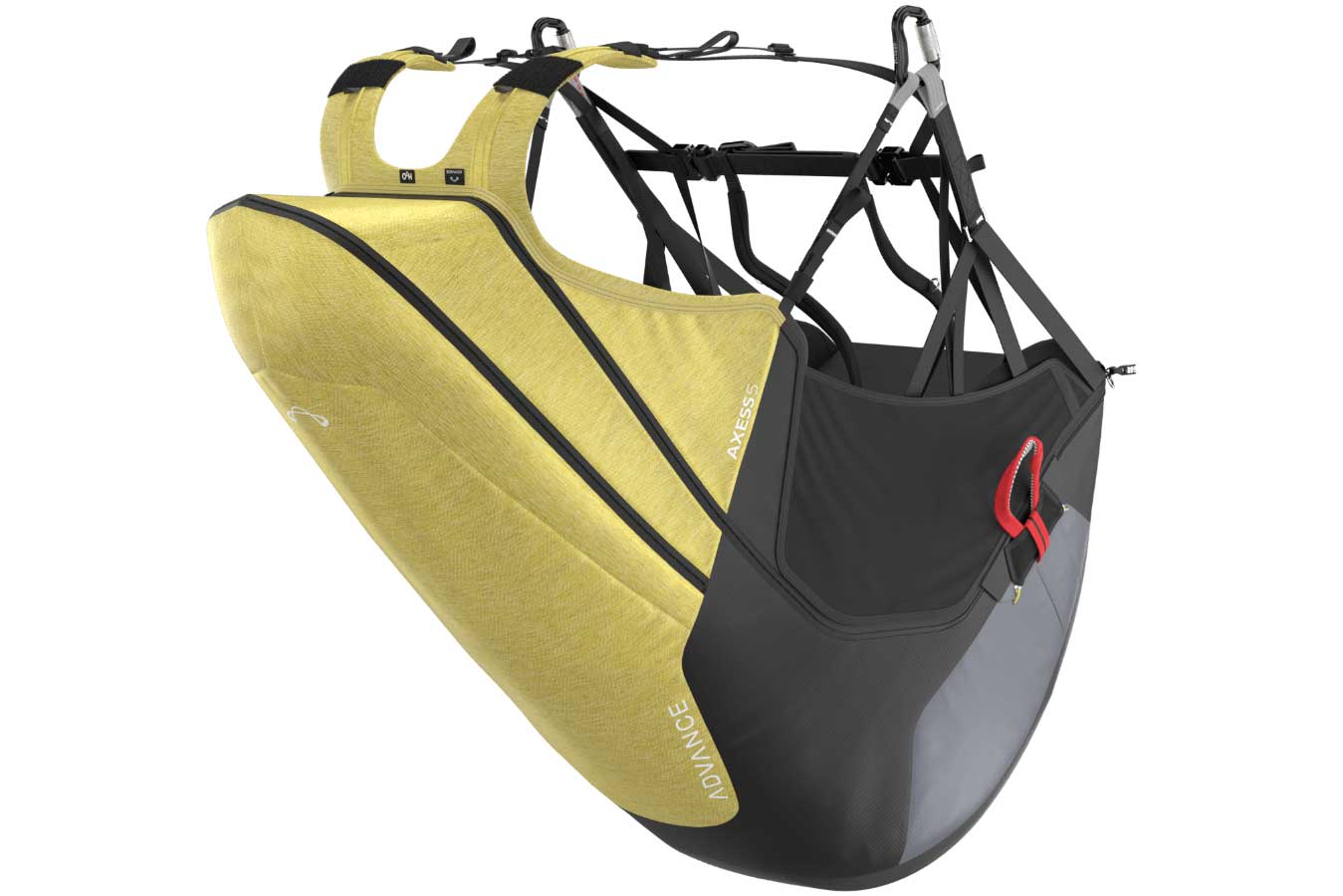

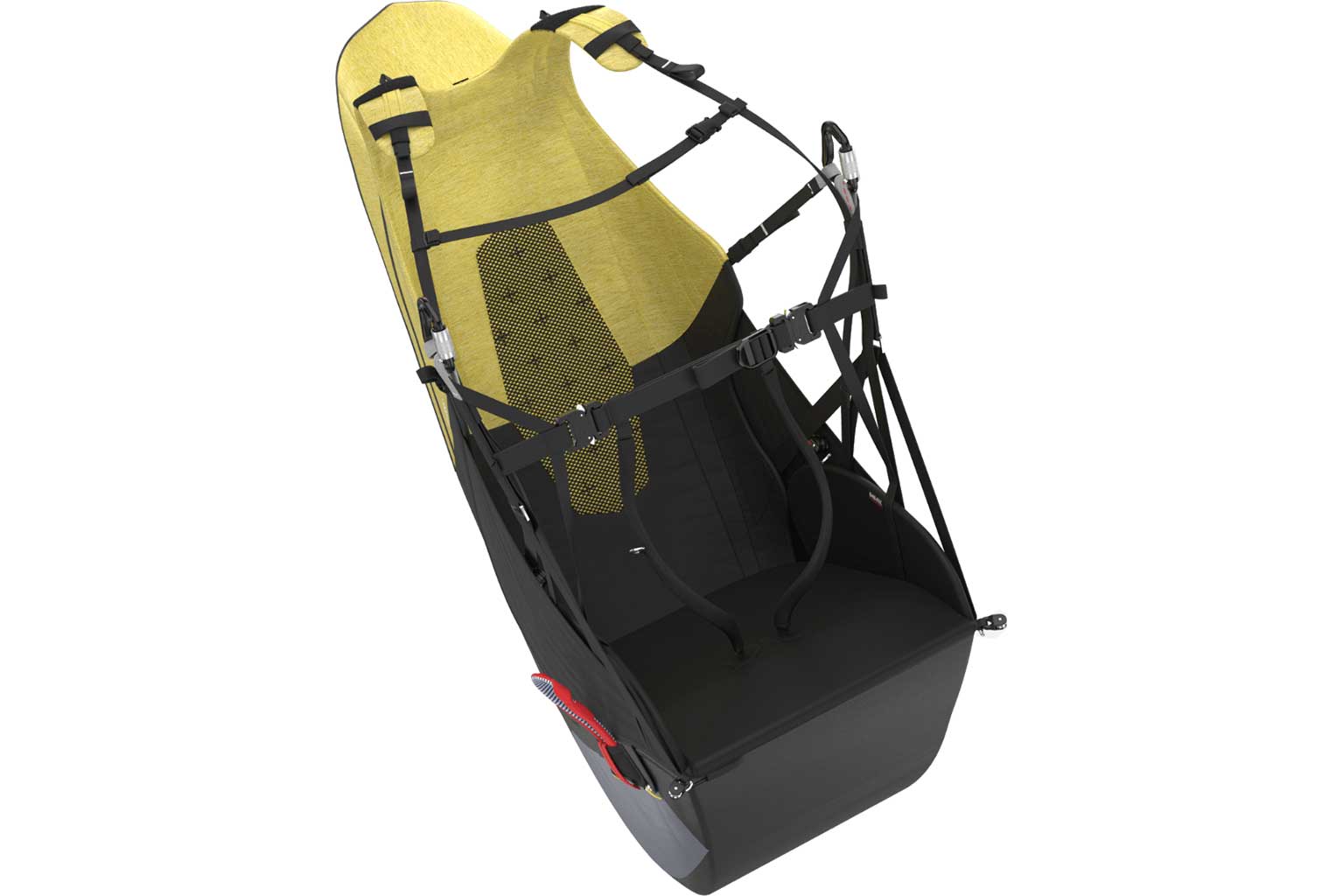

The AXESS is the classic ADVANCE beginner harness, and this fifth generation is simpler, more compact and safer than ever before. The packed harness volume, proven features and a natural adjustment system qualify this seatboard harness as an allrounder, where straightforward and trouble-free handling is important.
ELEMENTARY
ADVANCE Classic
The AXESS 5 has all the basic qualities needed for a beginner and allround harness. These range from easy adjustment, a plain and simple closure system, a safe and reliable riser clip-in procedure to the ease of sitting properly after takeoff – and the important standing-up-again before landing.
COMPACT
Simple and comfortable
The AXESS 5 is built to be robust. It has a Honeycomb PP seatboard, and the main protector is now joined by SAS-TEC crash protection. For a harness of this sophistication its packed volume is surprisingly small. When packing, the back section folds snugly to the seatboard, and the Air-Foam Hybrid-Protector also compresses when squeezed in the glider rucksack.
SAFE
Fully-functioning protection
As its main protector the AXESS 5 has the removable ADVANCE Air-Foam Hybrid-Model. This protector was originally developed for the AXESS 2, and is ready for its full protecting function before any takeoff attempt. Visco-elastic SAS-TEC components are also installed at the sides and up the entire back. These defend the pilot against impacts and pointed obstructions.
Technology & Features

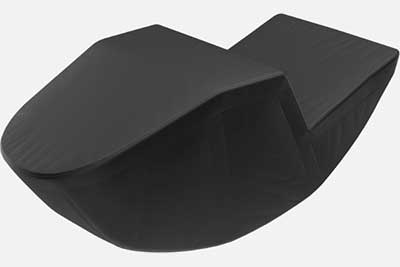

AIR-FOAM HYBRID-PROTECTOR
The Air-Foam Hybrid-Protector automatically fills with air when the rucksack is reversed into a harness, and under normal circumstances is ready to function after about 60 seconds. For maintenance it can be taken out of its own compartment under the seat shell. For maximum lifespan the protector should not be left compressed for extended periods, and never stored when wet.
SAS-TEC PROTECTION

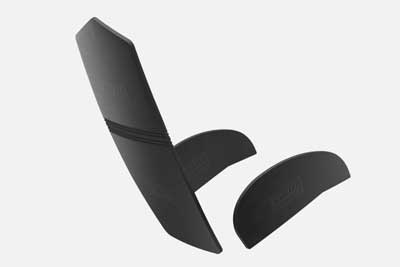

Three visco-elastic soft-foam panels – one on each side and the other up the back - protect the pelvis and spine up to the neck. These protective components are made by the SAS-TEC manufacturer in Germany, and can be removed and replaced.

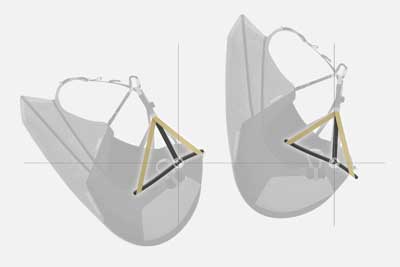

BALANCE-STRAP-SYSTEM
The Balance Strap System makes it easy to sit back in the harness after takeoff, and stand up again before landing.
DATA
| AXESS 5 | S | M | L |
|---|---|---|---|
| Pilot height [cm] | 155-172 | 165-183 | 178-202 |
| Seating width [cm] | 34 | 35.5 | 37 |
| Seatboard depth [cm] | 40 | 44 | 46 |
| Carabiner height [cm] | 42 | 44 | 46 |
| Chest strap width [cm] | 42-54 | 42-54 | 42-54 |
| Harness weight [kg] | 4.1 | 4.25 | 4.45 |
| Harness certification | EN 1651:2018+A1:2020 & NfL 2-565-20 / 120 kg | EN 1651:2018+A1:2020 & NfL 2-565-20 / 120 kg | EN 1651:2018+A1:2020 & NfL 2-565-20 / 120 kg |
MATERIALS
| Main straps | Polyester, 25mm, 8kN |
|---|---|
| Leg straps | Polyester, 15mm, 13.2kN |
| Shoulder straps | Polyester, 15mm, 13.2kN |
| Seat area | Nylon Oxford 210D PU3 |
| Outer covering | Nylon Ripstop 210D PU3 |
| Chest strap | AustriAlpin Cobra |
| Carabiner | Alias, Twist Lock, 23kN, 58gr. |
- Protector
- SAS TEC Elements
- Honeycomb PP Seatboard
- 2 Edelrid Alias Alu carabiners
- Speedbar
- Getting Started Booklet
