PHI Maestro X-Alps L 23 – ultraleicht, dynamisch & stark reduziert
- Modell: PHI Maestro X-Alps 23
- Zertifizierung: Highend EN‑B – für ambitionierte XC‑Piloten
- Gewicht: ca.3,65 kg
- Gewichtsbereich: 90-110 kg Startgewicht
- Check inkl.: sofort flugbereit
Designer's Note
If you want to use as less cloth as possible, you have to use it very efficient! We were reducing the internal construction of the MAESTRO X-alps extremely without influencing the flying performance or flying behavior. So the ultralight X-alps version matches its heavier brother in all flying parameters. It has just a lot less weight. This is the wing for all sort of hike and fly competitions or your personal X-alps adventure!
- Hannes Papesh -
| name | XS | XSS | S | M | ML | L | XL |
| size | 17 | 18 | 19 | 21 | 22 | 23 | 25 |
| number of cells | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 | 60 / 120 |
| projected span [m] | 8,33 | 8,64 | 8,78 | 9,22 | 9,44 | 9,65 | 10,07 |
| projected area [m²] | 17,31 | 18,42 | 19,21 | 21,21 | 22,22 | 23,21 | 25,27 |
| projected aspect ratio | 4,01 | 4,06 | 4,01 | 4,01 | 4,01 | 4,01 | 4,01 |
| flat span [m] | 10,63 | 10,93 | 11,2 | 11,77 | 12,05 | 12,31 | 12,85 |
| flat area [m²] | 20,33 | 21,49 | 22,56 | 24,91 | 26,1 | 27,27 | 29,68 |
| flat aspect ratio | 5,56 | 5,56 | 5,56 | 5,56 | 5,56 | 5,56 | 5,56 |
| line length [m] | 6,32 | 6,74 | 6,66 | 6,99 | 7,16 | 7,32 | 7,63 |
| total line length [m] | 210,1 | 221 | 221,4 | 232,5 | 237,9 | 243,2 | 253,8 |
| maximum chord [m] | 2,38 | 2,45 | 2,51 | 2,64 | 2,7 | 2,76 | 2,88 |
| minimum chord [m] | 0,54 | 0,55 | 0,56 | 0,59 | 0,61 | 0,62 | 0,65 |
| weight [kg] | 2,9 | 2,99 | 3,25 | 3,45 | 3,55 | 3,65 | 3,9 |

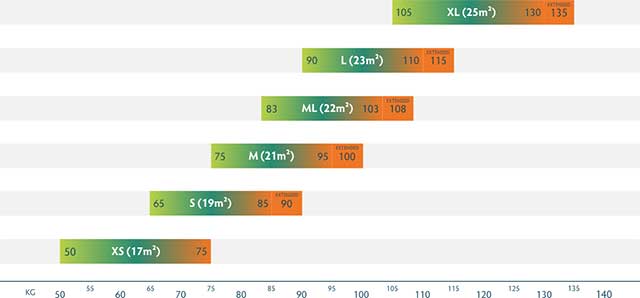

| standard weight range [kg] | 50-75 | 70-80 | 65-85 | 75-95 | 83-103 | 90-110 | 105-130 |
| extended weight range [kg] | 80-85 | 85-90 | 95-100 | 103-108 | 110-115 | 130-135 | |
| certified weight range [kg] | 70-85 | 65-90 | 75-100 | 83-108 | 90-115 | 105-135 | |
| certification (EN/LTF) | B | B | B | B | B | B | B |
| material | Porcher Skytex 27 double coated | ||||||
| risers | RZ3(3), R03 (3+1), R04 (3+1) | ||||||
| riser length [mm] | 500 | 540 | 540 | 540 | 540 | 540 | 540 |
| speedway [mm] | 150 | 175 | 180 | 180 | 180 | 180 | 200 |
