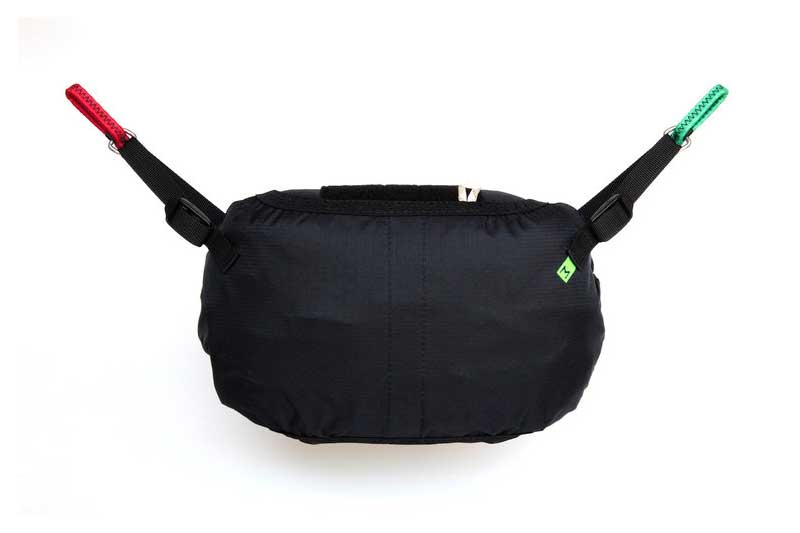

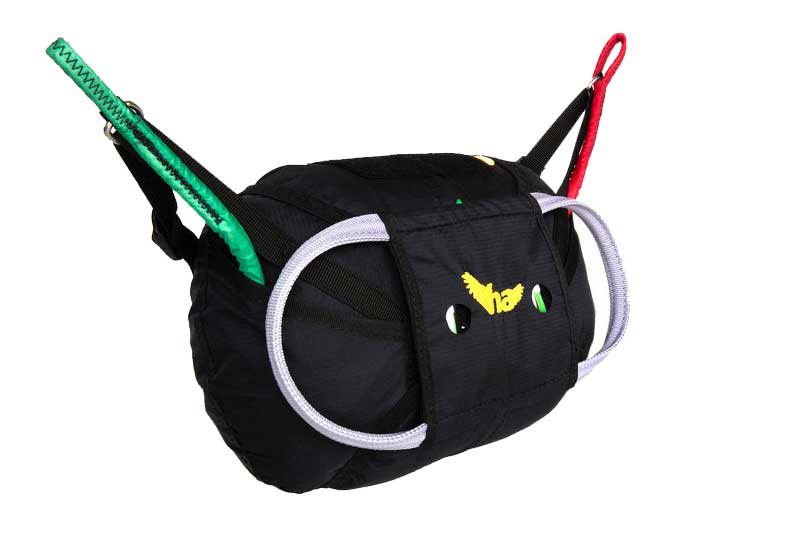

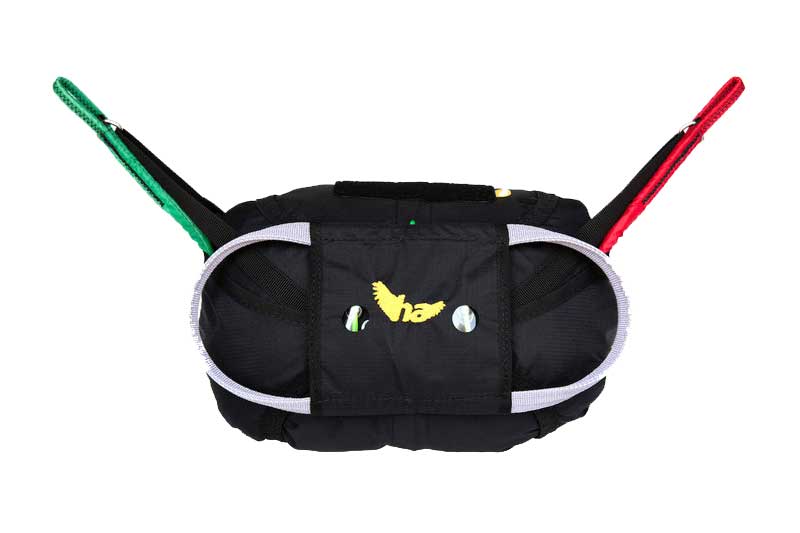

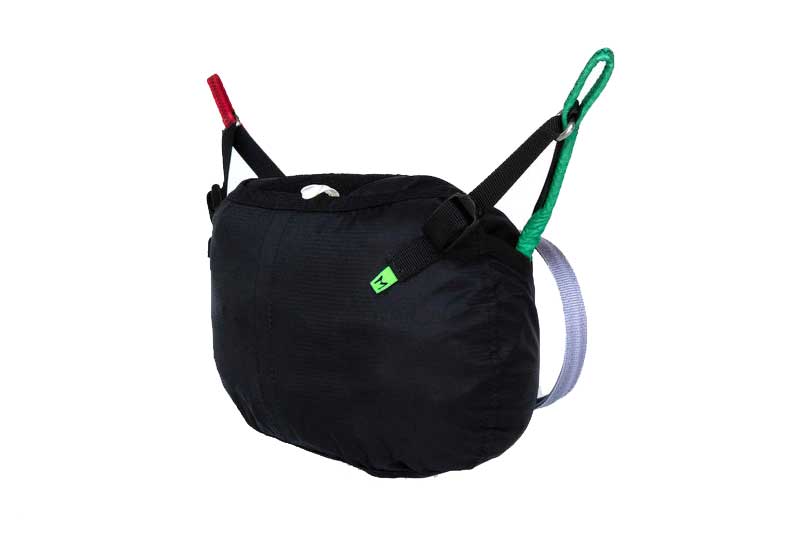

The release mechanism facilitates deployment from either side, using either the right or the left hand. The laterally positioned handles are within sight of the pilot and can easily be reached even if the pilot’s upper body is in a reclined/supine position (e.g. when exposed to high g-forces). Pilots with shorter arms can also reliably deploy their parachute. Deployment is nearly instant, due to the close connection between the handle and the parachute container. Flexible nylon pins permit the parachute to be deployed with little resistance, in any direction of pull. The compact design means the pilot will not be obstructed during take off or in-flight. The stiff handles rest flat on the container and retain their shape even during transport or long-term storage in a compressed glider bag. The parachute connector (Y-bridle or Beamer 3 riser extension) simultaneously acts as the main hang point. It is enclosed in a protective sleeve and fitted into the side of the container.
Technical data:
- light and compact design
- quick and simple installation
- long nylon pins to prevent accidental deployment
- transparent inspection panels to check pins are secure
- the parachute connector/main hang point is securely fastened to the parachute container to prevent dislodging

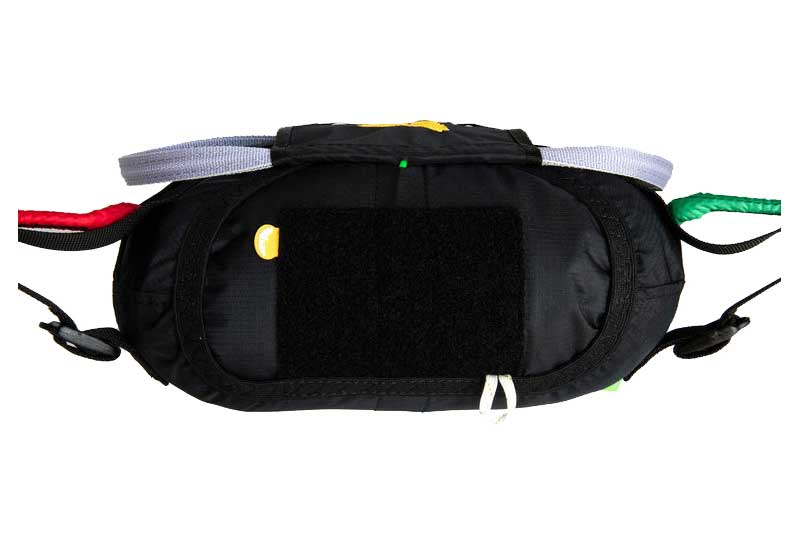

- Velcro panel and lanyard to secure flight instruments
- compatible with all modern harnesses and parachutes
Available in 3 sizes
- S: PENTAGON 100 light, Beamer 3 light small as well as modern lightweight parachutes
- M: PENTAGON 100, PENTAGON 120, PENTAGON 120 light, Beamer 3 small, Beamer 3 light as well as modern lightweight parachutes
- L: PENTAGON 120, PENTAGON 145, Beamer 3 as well as standard parachutes
Weight including handle, without Y-bridle/connector
Accessories required:
- Y-bridle for Gstar (suitable for the PENTAGON, cruciform or round parachutes as well as other non-steerable parachutes with a connection bridle)
OR:
